Executive Summary & Core Capabilities

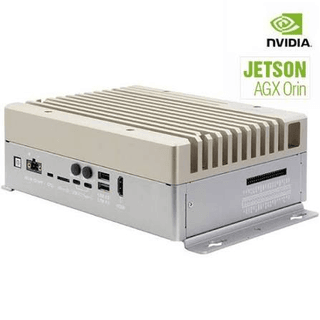

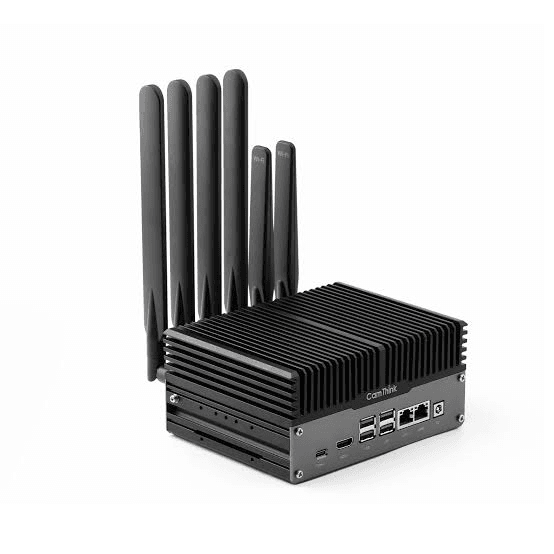

The IMAGO VisionBox AI is an industrial-grade Edge AI system designed specifically for high-speed machine vision and deep learning image processing. Driven by the powerful NVIDIA® Jetson AGX Orin™ compute engine (available in 32 GB or 64 GB RAM configurations), the system provides up to 275 TOPS of AI compute power in a compact, fanless enclosure engineered for 24/7 deployment in harsh industrial conditions.
- High-Speed AI Processing: Detects surface flaws, microscopic cracks, and complex packaging defects at maximum line speeds using deep learning algorithms.
- All-in-One Controller: Replaces separate PLC timer cards, strobe controllers, and external GPU PCs with a single fanless box.
- Maintenance-Free Design: Passive fanless construction eliminates air filters and moving parts, minimizing breakdown risks in dust- or particle-heavy environments.
The VisionBox AI uses NVIDIA's Ampere GPU architecture with Tensor Cores paired with a 12-core Arm® Cortex®-A78AE CPU. High-resolution image streams from multiple cameras (GigE Vision, USB 3.2 Gen 2, or Camera Link) are processed entirely in local memory using TensorRT acceleration.
The integrated RTCC hardware manages real-time I/O handling, encoder pulse counting, and direct LED strobe timing independent of Linux kernel load. The open Linux architecture allows seamless deployment of standard computer vision software like MVTec HALCON, OpenCV, or proprietary Python and C++ inference pipelines.
Technical Specifications & Performance Matrix
| Parameter | Engineering Specification |
|---|---|
| System Processor | NVIDIA® Jetson AGX Orin™ (32 GB or 64 GB options) |
| Max AI Performance | Up to 275 TOPS (Trillion Operations Per Second) |
| GPU Architecture | NVIDIA Ampere with 2048 CUDA Cores & 64 Tensor Cores |
| CPU Architecture | 12-core Arm® Cortex®-A78AE v8.2 64-bit |
| System Memory | Up to 64 GB LPDDR5 |
| Interface Type | Supported Configuration |
|---|---|
| Camera Interfaces | GigE Vision, USB 3.2 Gen 2, Camera Link |
| Real-Time Controller | Integrated RTCC (Real-Time Communication Controller) |
| I/O Capabilities | Deterministic digital inputs/outputs, encoder tracking inputs |
| Lighting Control | Integrated multi-channel LED lighting controller |
| Networking | Multiple industrial Ethernet ports for factory automation network integration |
| Compliance Metric | Specification |
|---|---|
| Operating System | Linux (Ubuntu-based) |
| SDK & Libraries | NVIDIA JetPack (CUDA, TensorRT), OpenCV, MVTec HALCON, C++, Python |
| Cooling Architecture | Passive fanless aluminum heatsink casing |
| Operating Mode | 24/7 continuous industrial deployment |
| Form Factor | Compact DIN-rail or wall-mount industrial box PC |
Thermal Management & Wiring Setup
Target Industry Applications
Continuous Web & Surface Inspection
Performs real-time light-field and deep learning defect inspection across high-speed film, foil, paper, textile, and sheet metal manufacturing lines.
Pharmaceutical Verification & Serialization
Supports track-and-trace systems, high-speed blister pack inspection, and vial level verification with strict validation compliance.
