NodeWave 1.2kWh Backup Power Generator (B254KE)

Locally engineered 1.2kWh (1,200Wh) Lithium Polymer backup battery generator featuring an integrated 600W inverter, universal AC output, XT60 solar charge port, and digital LED status display. Built in Kenya.
Published
Updated
3 min read
NodeWave 1.2kWh Backup Power Generator (B254KE)
SKU: NW-BAT-001Made in Kenya
30000KES
In Stock

Key Highlights

  • High-density 1.2kWh (1,200Wh) Lithium Polymer internal battery array (Model B254KE LIPOS)
  • Baseline 600W pure sine wave inverter with top-mounted universal AC socket
  • Dedicated XT60 high-current solar charge port optimized for 200W+ solar panels
  • Top-edge digital LED display for real-time battery status and voltage monitoring
  • Master red rocker power switch for instant hard isolation
  • Rugged textured sheet-metal chassis with protective top and bottom caps
  • Built-in high-efficiency BMS protecting against overcharge, deep discharge, and thermal overload
  • Locally manufactured in Kenya with full technical support, custom mounting, and housing options
  • High-density 1.2kWh (1,200Wh) Lithium Polymer internal battery array (Model B254KE LIPOS)
  • Baseline 600W pure sine wave inverter with top-mounted universal AC socket
  • Dedicated XT60 high-current solar charge port optimized for 200W+ solar panels
  • Top-edge digital LED display for real-time battery status and voltage monitoring
  • Master red rocker power switch for instant hard isolation
  • Rugged textured sheet-metal chassis with protective top and bottom caps
  • Built-in high-efficiency BMS protecting against overcharge, deep discharge, and thermal overload
  • Locally manufactured in Kenya with full technical support, custom mounting, and housing options
Locally Built & Supported: Engineered and assembled in Kenya (Model: B254KE LIPOS). This backup unit comes with dedicated regional support, local hardware servicing, and optional custom enclosure or bracket fabrications tailored to your installation site.

Executive Summary & Core Capabilities

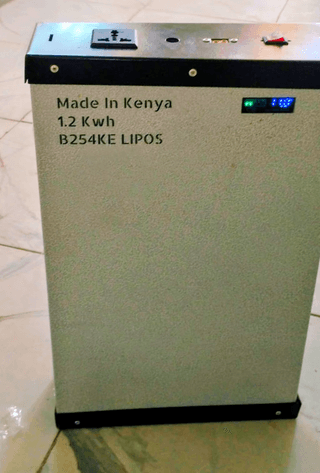

The NodeWave 1.2kWh Power Generator & Backup Unit (B254KE LIPOS) is an industrial-grade energy storage unit housed in a powder-coated metal chassis. Engineered to provide reliable power during grid outages, it combines a 1.2kWh Lithium Polymer battery core with an onboard 600W inverter and an accessible top-mounted control interface.

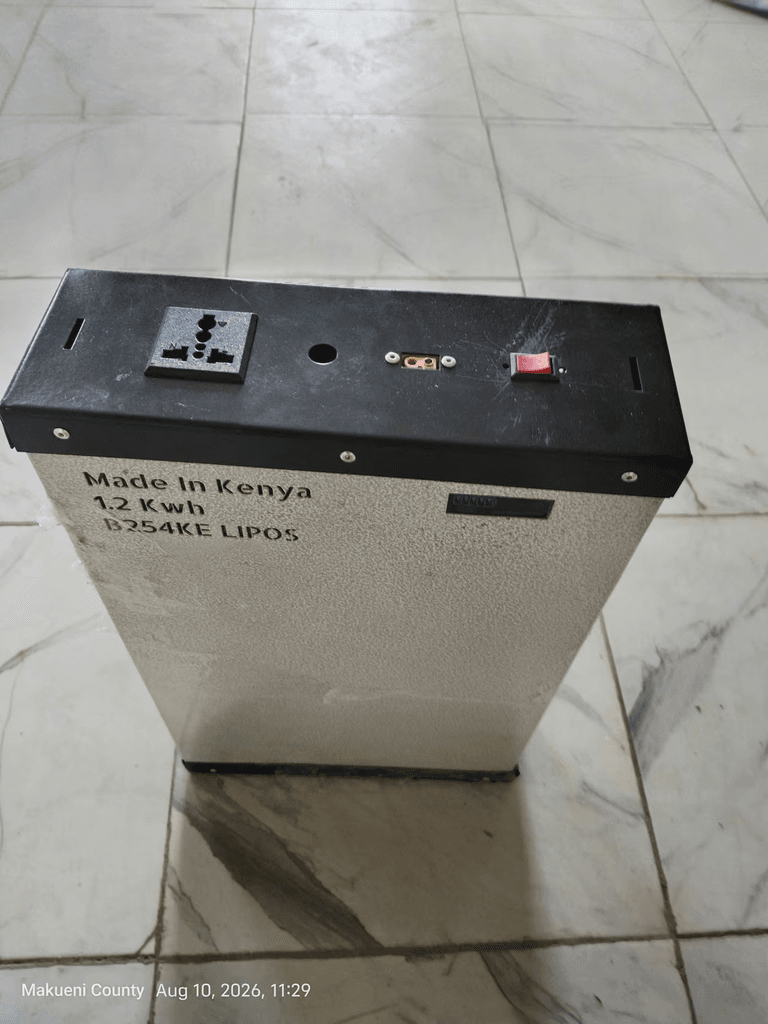

Top-Panel Accessibility & Real-Time Monitoring: The top panel isolates all operational controls in one convenient location, featuring a universal AC outlet, direct XT60 solar charging input, master toggle switch, and a top-edge digital LED screen that provides immediate readout of battery voltage and charge percentage.

Practical Application

Provides continuous backup for critical networking gear, home workstations, security cameras, and field IoT hubs. Recharges seamlessly via AC grid power or connected photovoltaic solar panels via the top XT60 port.

Hardware Architecture

Built inside a textured vertical sheet-metal cabinet with heavy-duty top and bottom caps. Powered by a high-efficiency Lithium Polymer cell array and protected by an onboard BMS handling thermal management, overcharging, and deep-discharge protection.

Technical Specifications & Features

FeatureEngineering Specification
Battery ChemistryLithium Polymer (B254KE LIPOS)
Energy Capacity1.2 kWh1.2\text{ kWh} (1,200 Wh1,200\text{ Wh})
Continuous Inverter Output600 W600\text{ W} Continuous
AC Socket TypeUniversal Multi-Standard Output Socket
Main IsolationMaster Red Rocker Power Switch

Feature Breakdown

  • Everyday Overview: Easily plug in appliances without needing extra wall adapters. The top control deck organizes your power switch, display screen, and sockets for quick access.
  • Technical Details: Features a multi-standard Universal AC Socket (compatible with UK 3-pin Type G, EU 2-pin, and US plugs) backed by a 600W pure sine wave inverter, paired with a master red rocker switch for hard isolation.

Operation & Operational Safety

Always power off the main rocker switch prior to connecting or disconnecting solar input lines. For solar charging, connect a solar panel array rated at 200W or higher to the top XT60 port. Do not exceed the 600W continuous inverter load rating.

Official Local Support & Customization

For inquiries regarding volume procurement, custom mounting fabrications, or regional technical support in Kenya:

Support & Inquiries

Get in touch with our Nairobi-based technical support team for custom mounting hardware, installation guidance, and regional servicing.
