Executive Summary and Core Capabilities

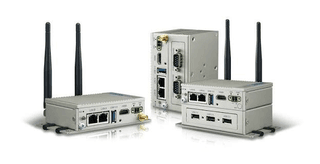

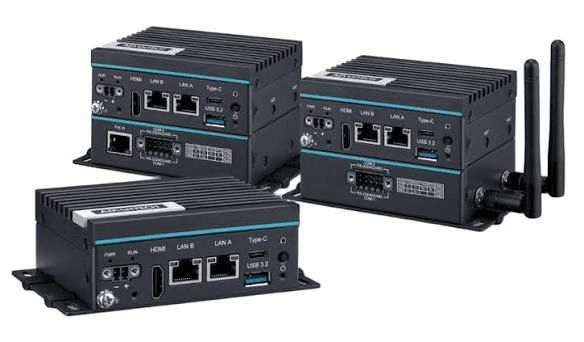

The Advantech UNO-2271G (including the UNO-2271G V2 and V3 generations) is engineered to bring real-time processing and edge AI intelligence to high-density industrial control panels. Powered by power-efficient Intel Celeron, Pentium, or Atom x7000 Series processors, the system processes high-frequency field loops and executes light machine learning inference directly at the network edge.
- Pocket-Sized Industrial Chassis: Fits into extremely constrained control cabinets and machine frames with flexible DIN rail, VESA, or wall mounting.
- Certified Cloud Gateway: Pre-validated for Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass for secure stream processing to cloud platforms.
- Fanless Cable-Free Reliability: Solid-state fanless design with high shock () and vibration () resistance for 24/7 continuous duty.
The system utilizes Intel Elkhart Lake or Amston Lake low-power processors paired with up to 8 GB of onboard DDR4 or LPDDR5 RAM. Integrated storage includes onboard eMMC flash ( or ) alongside mSATA and M.2 expansion options.

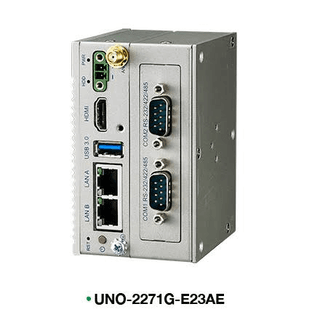

Physical connectivity includes dual Gigabit Ethernet RJ45 ports, USB 3.2 Gen 1 ports, and HDMI output. The internal mPCIe and M.2 slots support optional neural network acceleration cards, 4G LTE/5G modems, and Wi-Fi 6 wireless modules.
Technical Specifications Matrix
| Parameter | Specification Details |
|---|---|
| Processor Models | Intel Celeron N6210 Dual-Core / Pentium N6415 Quad-Core / Atom x7211RE |
| System Memory | 4 GB or 8 GB DDR4 / LPDDR5 onboard |
| Onboard Storage | 32 GB or 64 GB eMMC flash (up to 256 GB) + mSATA slot |
| Operating Systems | Windows 10 LTSC, Windows 11, Ubuntu 20.04 LTS, Ubuntu Core |
| Edge Software Support | WISE-Edge365, Azure IoT Edge, AWS IoT Greengrass |
| Interface Type | System Capability |
|---|---|
| Ethernet Ports | 2x 10/100/1000 Mbps RJ45 (Intel / Fast Ethernet) |
| USB and Display | 2x USB 3.2 Gen 1 Type-A, 1x HDMI 1.4b () |
| Expansion Slots | 1x Full-size mPCIe, 1x M.2 (B-Key/E-Key) |
| iDoor Module Support | Fieldbus (CANopen, Profibus), Isolated Digital I/O, Serial COM, PoE |
| Cellular / Wireless | Micro-SIM / Nano-SIM slot with M.2 4G LTE or Wi-Fi 6 kit support |
| Metric | Certified Rating |
|---|---|
| Power Supply Input | via 2-pin terminal block ( typical / max) |
| Operating Temperature | () with air flow |
| Shock and Vibration | IEC 60068-2-27 ( half sine) / IEC 60068-2-64 ( random) |
| Dimensions (WxDxH) | () |
| Certifications | CE, FCC, UL, CCC, BSMI certified |
Target Industry Applications
Edge AI and Protocol Translation
Translates raw Modbus, CAN, or OPC UA field signals into MQTT while running local AI anomaly detection.
Compact Machine Vision Gateway
Processes optical sensor streams and camera feeds at the machine level to flag defects without remote server lag.
External Resources and Documentation
Access official product datasheets, CAD files, and technical guides directly from Advantech:
