Executive Summary and Core Capabilities

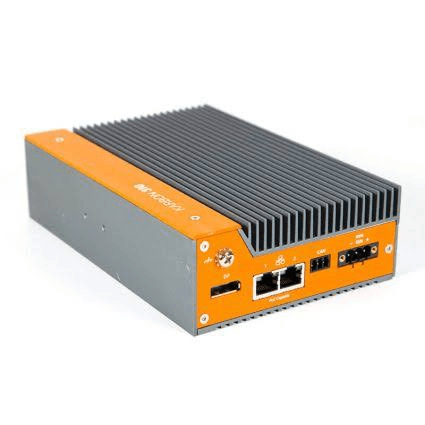

The OnLogic Karbon 410 is an ultra-compact, fanless industrial PC designed to withstand dirty, vibration-prone, and wide-temperature environments. Measuring just 50 mm tall, it provides flexible expansion options, embedded CAN bus connectivity, and integrated automotive power management for demanding deployment locations.
- Validated Red Hat Certification: Officially certified on Red Hat Enterprise Linux 8.6, ensuring proven software compatibility and verified enterprise-grade security patches.
- Automotive Power Ignition: Features 9 V to 48 V DC input combined with programmable ignition timing to safely boot and shut down systems in vehicle deployments.
- Modular Interface Support: Standard ports include dual 1GbE LAN, four USB ports, DisplayPort, and optional ModBay slot expansion for dual COM ports or GPIO.
The system leverages Intel Atom x6000E Series processors (formerly Elkhart Lake), paired with up to 32 GB of DDR4-3200 SO-DIMM memory supporting In-Band ECC (IBECC) for enhanced data protection.
Internal expansion includes an M.2 3042/2280 B-key slot for storage or cellular modems, an M.2 2230 E-key slot for Wi-Fi, a full-size mPCIe slot, and an externally accessible Micro-SIM slot for 4G LTE wireless connectivity.
Technical Specifications Matrix
| Parameter | Specification Details |
|---|---|
| Processor Models | Intel Atom x6211E (2 Cores, 1.3 to 3.0 GHz) or x6425E (4 Cores, 2.0 to 3.0 GHz) |
| Memory System | Up to 32 GB DDR4-3200 MT/s across 2 SO-DIMM slots (Supports IBECC) |
| Certified OS Platform | Red Hat Enterprise Linux 8.6+, Windows 10 IoT Enterprise |
| Edge Management | Compatible with ZEDEDA Edge Virtualization Engine Operating System (EVE-OS) |
| Security Hardware | Intel PTT and optional physical TPM 2.0 hardware module |
| Feature | System Configuration |
|---|---|
| Network Interfaces | 2x 1GbE RJ45 ports (Intel I210-IT) with optional PoE+ modules |
| USB Connectivity | 2x USB 3.2 Gen 2 Type-A, 2x USB 2.0 Type-A |
| Display Outputs | 1x DisplayPort 1.4 (Supports multi-stream transport) |
| Industrial Interfaces | 1x CAN bus (3-pin terminal block), integrated Micro-SIM slot |
| ModBay Expansion | Supports optional dual COM ports (RS-232/422/485) or 8-bit GPIO |
| Environmental Metric | Certified Range |
|---|---|
| Input Voltage Range | via 3-pin terminal block with ignition pin |
| Operating Temperature | |
| Dimensions (WxHxD) | () |
| Vibration and Shock | Tested to IEC 60068-2-27, IEC 60068-2-64, and MIL-STD-810H standards |
| Regulatory Compliance | UL/IEC 62368-1, CE, FCC, Medical EMC (60601-1), Rail EMC (50121) |
Target Edge Deployment Scenarios
Industrial IoT Gateway
Aggregates sensor data from factory floors, standardizes industrial protocols, and transmits telemetry to edge clouds.
Mobile and In-Vehicle Computing
Manages vehicle power behavior via ignition input while capturing field telematics over 4G cellular connections.
