Executive Summary & Core Capabilities

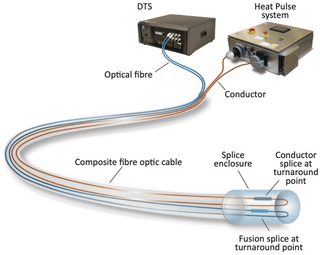

The Yokogawa DTSX3000 is a flagship Distributed Temperature Sensor (DTS) built to protect critical infrastructure across vast operational distances. Traditional point sensors like thermocouples or RTDs leave dangerous unmonitored gaps and require thousands of individual signal cables. The DTSX3000 uses a single fiber line to measure temperature every 0.2 to 1 meter along distances up to 50 km.
Because optical fiber is completely passive and immune to electromagnetic interference (EMI), high voltages, and explosive gas atmospheres, the DTSX3000 provides total operational awareness in severe processing and transmission environments.
- 100% Linear Coverage: Replaces thousands of point thermal sensors with a single fiber cable, leaving zero blind spots.
- Immune to Severe EMI & Lightning: Operates safely inside high-voltage power conduits, subsea power lines, and transformer yards where copper wiring fails.
- 16-Channel Switching Capability: A single DTSX3000 unit can sequentially scan up to 16 separate optical fiber loops using an integrated optical switch.
- Extreme Temperature Resilience: Compatible with passive optical fibers capable of operating from cryogenic temperatures up to .
The DTSX3000 fires laser pulses down the fiber and evaluates Raman backscattering at two wavelengths: Anti-Stokes (temperature-sensitive) and Stokes (temperature-insensitive).
By calculating the intensity ratio relative to time delay , the unit determines exact local temperature at distance :
Technical Specifications & Performance Matrix
| Metrology Parameter | Engineering Specification |
|---|---|
| Measurement Principle | Raman Scattering Optical Time Domain Reflectometry (OTDR) |
| Distance Options | variants |
| Spatial Resolution | ( range) / ( range) |
| Sampling Resolution | Down to () |
| Temperature Accuracy | (time and distance dependent) |
| Feature | Technical Profile |
|---|---|
| Supply Voltage | (Wide-range DC) or |
| Power Consumption | typical (ideal for remote solar-powered stations) |
| Network Protocols | Modbus TCP, Modbus RTU, EtherNet/IP, LAS |
| Channel Options | Integrated optical switches |
| Metric | Specification |
|---|---|
| Form Factor | Rack-mountable or field enclosure modular frame |
| Laser Safety Class | Class 1M Laser Product (Safe under standard operation) |
| Operating Range | () |
| Optical Connectors | FC/APC or E2000/APC angle-polished connections |
Target Industry Applications
High-Voltage Power Lines
Tracks localized thermal hot spots along underground transmission conduits and subsea cables to prevent insulation breakdown.
Pipeline Leak Detection
Detects sudden local temperature drops from high-pressure gas expansion leaks or temperature spikes from hot oil leaks.
Official Provider Resources & In-Depth Documentation
For complete technical handbooks, enterprise system integration guides, and direct support from Yokogawa's engineering team, explore the official manufacturer portals below:
