Executive Summary and Core Capabilities

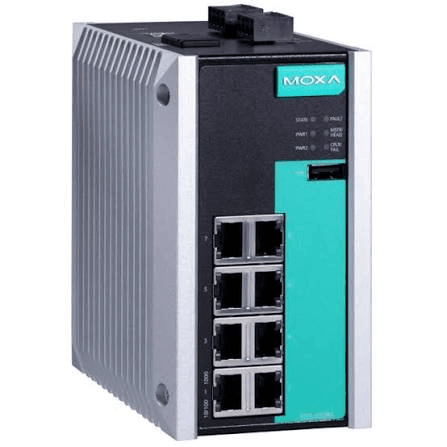

The Moxa EDS-G508E series delivers high-density Gigabit routing to keep automation loops uninterrupted. Built to satisfy strict heavy-industrial EMC regulations (EN 61000-6-2/6-4 and IEC 61000-4 EMS standards), the switch eliminates packet dropouts and signal interference in heavy industrial setups.
- Heavy-Duty EMC Noise Resistance: Built to withstand severe electrical noise, ESD surges up to , and continuous electromagnetic fields.
- Industrial Protocol Integration: Supports EtherNet/IP, PROFINET, and Modbus TCP for easy monitoring inside SCADA and PLC diagnostic environments.
- IEC 62443 Cybersecurity Baseline: Integrates port-based security, RADIUS/TACACS+ authentication, IEEE 802.1X, and HTTPS/SSH encrypted management.

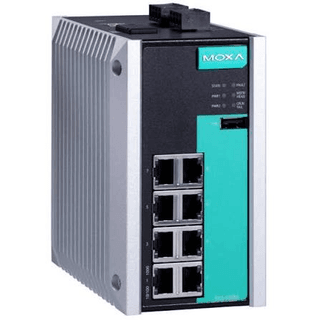

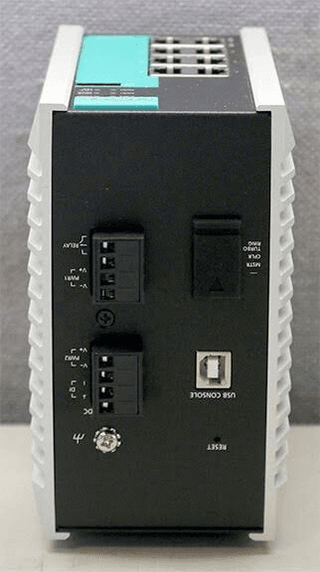

The switch features eight Gigabit 10/100/1000BaseT (X) copper RJ45 ports housed in a rugged IP30 metal casing. It incorporates dual redundant terminal block power inputs accepting wide ranges () alongside built-in alarm relay contacts to trigger physical sirens or PLC inputs upon link failure.
System backups are made simple using the USB Type-A port, which interfaces directly with the optional ABC-02-USB configurator for rapid zero-laptop field replacements.
Technical Specifications Matrix
| Parameter | Specification Details |
|---|---|
| Ethernet Interfaces | 8x 10/100/1000BaseT(X) Gigabit RJ45 ports |
| Switching Characteristics | MAC Table: 8K |
| Redundancy Features | Turbo Ring v1/v2, Turbo Chain, RSTP/STP, MSTP, Trunking |
| Fieldbus Support | Native EtherNet/IP, PROFINET IO, Modbus TCP |
| Management Software | Supported by MXstudio and MXview One network platforms |
| Standard / Test | Certified Level |
|---|---|
| Electrostatic Discharge (ESD) | IEC 61000-4-2: Contact: ; Air: |
| Radiated Susceptibility (RS) | IEC 61000-4-3: |
| Electrical Fast Transient (EFT) | IEC 61000-4-4: Power: ; Signal: |
| Surge Protection | IEC 61000-4-5: Power: ; Signal: |
| EMC Heavy Industrial | EN 61000-6-2 / EN 61000-6-4 compliant |
| Metric | Rating Standard |
|---|---|
| Power Input Voltage | redundant dual inputs |
| Current Consumption | ( max) |
| Standard Operating Temp | ( for -T model) |
| Enclosure Dimensions | () |
| Weight and Ingress Rating | () |
Target Industry Applications
Factory Control Room Backbones
Protects high-volume DCS automation signals against electromagnetic field interference in dense motor cabinets.
Substation and Power Grid Distribution
Delivers high ESD and surge protection for digital power substation telemetry and real-time monitoring.
