Executive Summary & Core Capabilities

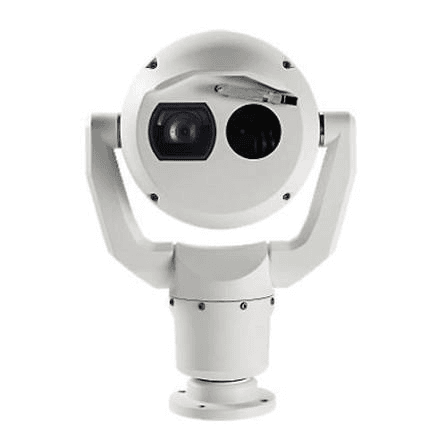

The Bosch MIC IP Fusion 9000i is an ultra-rugged bispectral PTZ camera designed for high-security perimeters, critical infrastructure, and pipeline boundary surveillance. Featuring an optical 1080p Starlight 30x sensor sitting side-by-side with an uncooled thermal imager, the unit delivers reliable target detection up to 4,517 meters () regardless of severe weather or lighting obstacles.
- All-Weather Vision: Fuses thermal heat sensing with clear optical zoom to see through smoke, heavy rain, dust, and zero-light conditions.
- Built-in Defroster & Wiper: Integrated silicone window wiper and internal glass defrosters keep lenses clear in sub-zero ice or downpours.
- Extreme Weatherproof Casing: Cast solid-aluminum enclosure rated IP68 and IK10 vandal resistance withstands extreme winds, high impacts, and salty air environments.
The MIC IP Fusion 9000i incorporates dual imaging channels: a 1/2.8-inch CMOS optical imager (, , optical zoom) with HDR X and Starlight low-light sensitivity, alongside a high-sensitivity uncooled Vanadium Oxide (VOx) microbolometer thermal imager ( VGA or QVGA options).
Metadata Fusion fuses edge-calculated detection overlays onto a single screen. If smoke or glare blinds the optical camera, thermal analytical metadata maintains tracking coordinates uninterrupted. Power is supplied via 24 VAC or High PoE (95W), while an integrated 16 GB eMMC provides local fallback recording.
Technical Specifications & Performance Matrix
| Imager Channel | Technical Specification |
|---|---|
| Visible Optical Sensor | Exmor R CMOS Starlight sensor ( resolution) |
| Optical Lens & Zoom | motorized optical zoom ( to , to FOV) |
| Thermal Imager Sensor | Uncooled Vanadium Oxide (VOx) focal plane array microbolometer |
| Thermal Resolution Options | VGA (, pitch) or QVGA () |
| Thermal Lens Focal Lengths | (), (), or () |
| Parameter | Performance Limit |
|---|---|
| Pan / Tilt Range | continuous pan rotation | total tilt range |
| Speed Control | Smooth pan/tilt speeds down to for distant target tracking |
| Ingress & Impact Protection | IP68 / NEMA 6P (submersible) and IK10 vandal impact resistance |
| Corrosion Resistance | salt atmosphere exposure (ASTM B117 standard) |
| Integrated Maintenance | Built-in long-life silicone wiper blade and automatic heated window defrosters |
| Compliance Feature | System Capability |
|---|---|
| Video Compression | H.265, H.264, and M-JPEG multi-streaming (up to 8 concurrent streams) |
| Edge Analytics | Bosch Intelligent Video Analytics (IVA) with Metadata Fusion |
| Edge Local Storage | internal eMMC memory backup |
| Power Supply Requirements | High Power over Ethernet () or ( typical) |
| Operating Temperature | () |
Installation & Mounting Guidelines
Target Industry Applications
Pipeline & Linear Corridor Security
Detects unauthorized personnel or vehicles approaching oil, gas, or water transmission pipelines across miles of remote terrain.
Critical Utility Substations
Combines thermal hotspots monitoring on transformer gear with optical boundary threat verification.
Official Provider Resources & Technical Documentation
Access official technical literature and manuals directly from Bosch Security Systems:
