Executive Summary & Core Capabilities

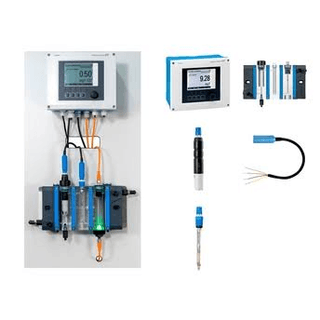

The Endress+Hauser Liquiline™ CM442 is an extensible 1- to 2-channel field transmitter designed for continuous liquid analysis across all process industries. Powered by non-contact inductively coupled Memosens digital technology, the CM442 automatically identifies connected sensors, loads calibration parameters, and initiates measurement immediately.
- Plug & Play Sensors: Connect any Memosens liquid analysis sensor and the controller auto-configures instantly without manual programming.
- Pre-Calibrated Lab Swaps: Sensors can be calibrated in a laboratory, then carried into the field and swapped in seconds without stopping transmitter power.
- Weatherproof Enclosure: Outdoor-ready IP66/IP67 enclosure built to handle rain, dust, and temperature swings in harsh plant environments.
The Liquiline CM442 4-wire controller manages 1 or 2 Memosens channels concurrently. It converts sensor signals inductively at the sensor head, eliminating interference from moisture, corrosion, or ground loops.
It supports up to 12 parameters: pH, redox/ORP, ISFET, conductive/inductive conductivity, dissolved oxygen, nitrate, turbidity, free chlorine, and sludge level. Data logging and backup configuration files are handled via an integrated SD card reader. Communication options include PROFIBUS DP, Modbus RS485, Modbus TCP, and Ethernet.
Technical Specifications & Performance Matrix
| Parameter | Engineering Specification |
|---|---|
| Memosens Inputs | 1 or 2 digital channels (auto-detecting) |
| Supported Parameters | pH, ORP, ISFET, Conductivity, Dissolved Oxygen, Turbidity, Nitrate, Chlorine, Sludge Level |
| Optional Inputs | Up to 2x 0/4...20 mA analog inputs, 2x digital inputs |
| Calibration Storage | Stored inside individual Memosens sensor heads |
| Data Logging | SD Card slot for software updates, log storage, and setup transfer |
| Output Type | Configuration Range |
|---|---|
| Current Outputs | 2 to 8x 0/4...20 mA active outputs (galvanically isolated) |
| Relay Contacts | 1x Alarm relay + up to 4x auxiliary switching relays |
| Digital Fieldbus | PROFIBUS DP, Modbus RS485, Modbus TCP, Ethernet |
| Integrated Web Server | Remote parameterization and display streaming over Ethernet |
| Compliance Metric | Specification |
|---|---|
| Ingress Protection | IP66 / IP67 / NEMA 4X outdoor rated |
| Enclosure Material | Flame-retardant Polycarbonate (PC-FR) |
| Dimensions | () |
| Operating Temperature | () |
| Supply Voltage | () or |
Wiring & Safety Instructions
Target Industry Applications
Water & Wastewater Management
Monitors pH, dissolved oxygen, and turbidity in aeration basins, influent monitoring, and final discharge water.
Chemical & Process Industries
Tracks inductive conductivity, pH, and redox in corrosive chemical processes and neutralisation systems.
Official Provider Resources & Technical Documentation
Access official Endress+Hauser technical documentation and manual downloads:
