Executive Summary & Core Capabilities

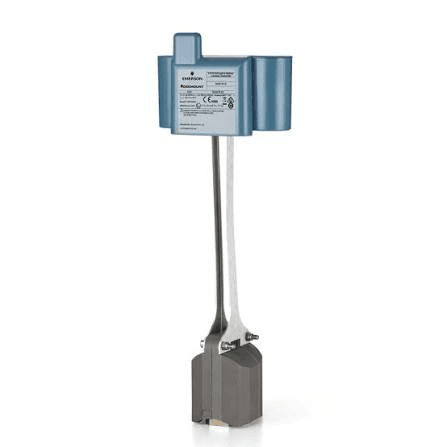

The Rosemount™ Wireless WT210 Corrosion and Erosion Transmitter (formerly Permasense WT210) is a non-intrusive, battery-powered ultrasonic wall thickness monitoring system engineered for high-temperature industrial piping and pressure vessels. Designed to operate without liquid couplant or process shutdowns, the transmitter continuously calculates metal loss with sub-10 micron precision and delivers real-time trend analytics to facility management software.
- Zero Process Downtime: Attaches directly to the outside of pipes and vessels without drilling, cutting, or interrupting fluid flow.
- No Maintenance Required: Operates on an internal high-capacity battery pack for up to 9 years without maintenance or couplant replenishment.

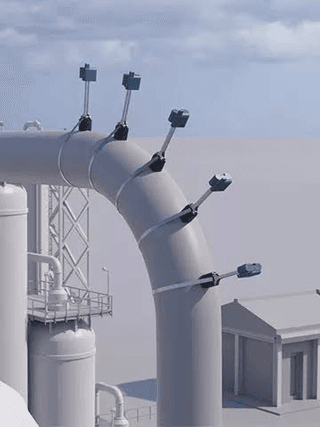

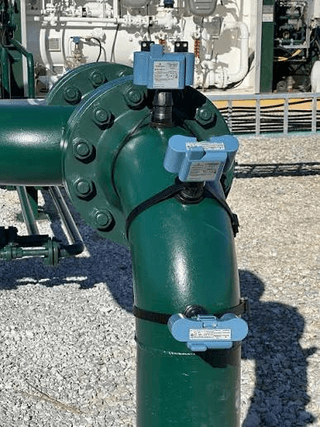

- Weld-Free Universal Installation: Optional Universal Mount strap kit enables rapid installation on pipes up to () without requiring certified welders.
Integrates advanced ultrasonic pulse-echo thickness measurement with specialized solid-state waveguides. The dual waveguides protect internal piezoelectric elements from extreme pipe wall temperatures ( to ).
Data is secured and routed using WirelessHART® protocols (IEEE 802.15.4), guaranteeing over 99% data reliability in dense metal refineries and chemical plants. Power is supplied by a field-replaceable Rosemount BP20E lithium module certified for intrinsically safe Class 1 Div 1 / Zone 0 hazardous locations.
Technical Specifications & Performance Matrix
| Parameter | Engineering Specification |
|---|---|
| Measurement Technology | Non-intrusive Ultrasonic Thickness (UT) Waveguide |
| Measurable Wall Thickness | () to () |
| Metal Loss Resolution | () in field conditions |
| Measurement Interval | Default: Every 12 hrs | Configurable down to 1 hr |
| Couplant Requirement | Dry contact waveguide (No acoustic couplant needed) |
| Component | Technical Profile |
|---|---|
| Communication Standard | WirelessHART® (2.4 GHz ISM Band) |
| Network Reliability | Packet Delivery Rate via mesh topology |
| Power Supply | Field-replaceable Rosemount BP20E Module |
| Battery Operational Life | Up to 9 years (dependent on update rate) |
| Software Compatibility | Plantweb™ Insight, AMS Optics, WMC, Emerson 1420 Gateway |
| Compliance Metric | Specification |
|---|---|
| Pipe Surface Temperature | () |
| Universal Mount Temp Rating | Up to () |
| Pipe Sizing Flexibility | to (Universal Mount) or custom stud sizes |
| Hazardous Area Approvals | Intrinsically Safe Class 1 Div 1 / Zone 0 (ATEX, IECEx, CSA, NEPSI) |
| Enclosure Rating | IP67 Weatherproof / High-resistivity polymer housing |
Mounting & Power Requirements
Target Industry Applications
Refining & Petrochemical
Monitors high-temperature crude unit overheads, distillation columns, and hydrocracker lines for naphthenic acid or sulfidic corrosion.
Upstream Oil & Gas
Tracks particle erosion caused by sand flowback on high-pressure wellheads, choke manifolds, and offshore production headers.
Official Provider Resources & Technical Documentation
Explore official manuals, technical flyers, and installation guidelines provided directly by Emerson:
