Executive Summary & Core Capabilities

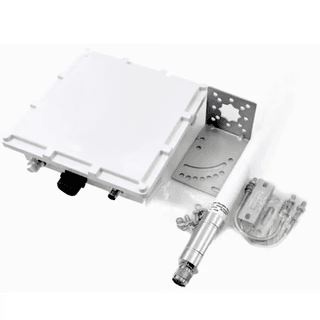

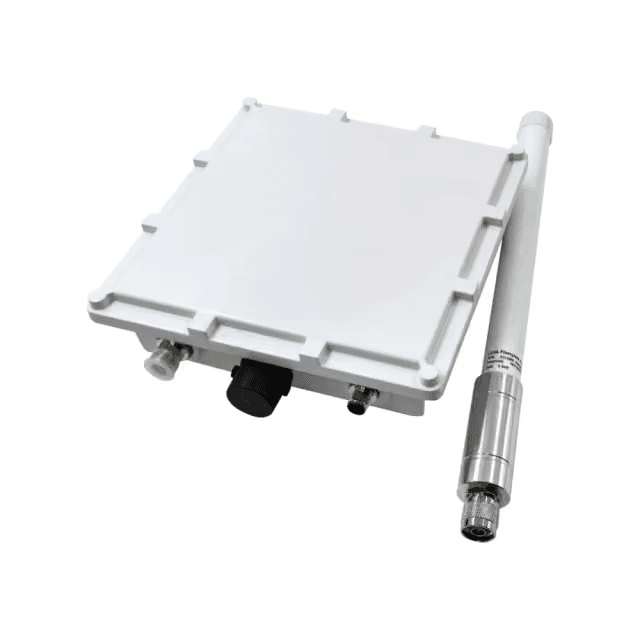

The HKT LoRaWAN Outdoor Gateway (Model OD-100) is an enterprise-tier, long-range wireless hub built to collect data from thousands of tracking sensors simultaneously. Housed in a weather-sealed enclosure, it intercepts wireless signals broadcast by remote sensors—such as water meters or agricultural soil probes—and forwards them to the cloud over wired, cellular, or Wi-Fi networks.
- High Device Capacity: Connects with thousands of remote sensors located miles away, even through walls or heavy foliage, making it ideal for large farms or smart city networks.
- Automated Network Failover: Connects to the internet using standard ethernet, cellular mobile data, or local Wi-Fi. If your primary wired internet goes down, the device seamlessly switches to cellular data so your network stays live.
- All-Weather Resilience: Enclosed in a heavy-duty metal housing designed to withstand extreme weather conditions including heavy rain, blowing dust, freezing winters, and scorching heat.
Powered by the Semtech SX1302 digital baseband chip paired with dual SX1250/SX1257 RF front-ends. Delivers reception sensitivity and supports over 2,000 active nodes concurrently across global ISM bands (EU868, US915, AS923, AU915, CN470, IN865, KR920).
Includes a 10/100/1000 Mbps RJ45 Gigabit Ethernet port, a worldwide 4G LTE module (with 3G/2G fallback), dual-band Wi-Fi (2.4G/5G), and BLE 5.2. Enclosed in a die-cast aluminum housing with verified IP67 ingress protection and operating temperatures ranging from to .
Technical Specifications & Performance Matrix
| Parameter | Engineering Specification |
|---|---|
| Processing Core | Semtech SX1302 Concentrator + 2x SX1250 / SX1257 |
| Uplink Channels | 8 Channels (Half/Full-Duplex support) |
| Regional Frequencies | EU868 / US915 / AS923 / AU915 / CN470 / IN865 / KR920 |
| Rx Sensitivity | |
| Max Tx Power | Configurable up to |
| Component | Technical Profile |
|---|---|
| Processor | Quad-Core 1.5 GHz 64-bit ARM Cortex-A53 |
| System Memory & Storage | 512 MB RAM | 8 GB eMMC Flash Storage |
| Cellular Backhaul | 4G LTE Cat 1/4 Worldwide Module (with 3G/2G fallback) |
| Local Wireless | Wi-Fi 2.4G/5G (IEEE 802.11 b/g/n/ac) + BLE 5.2 |
| Wired Ethernet | 1x 10/100/1000 Mbps RJ45 Interface |
| Compliance Metric | Specification |
|---|---|
| Housing Construction | Die-Cast Aluminum with IP67 Waterproof & Dustproof Sealing |
| Unit Weight | 1.5 kg (3.3 lbs) |
| Power Methods | 1G PoE Switch Input (802.3af/at) or 12 VDC M12 Connector |
| Operating Temperature |
Installation & Power Requirements
Target Industry Applications
Precision Agriculture
Aggregates telemetry from soil moisture probes, automated irrigation controls, and weather stations across vast agricultural fields.
Smart Infrastructure & AMR
Monitors automated utility meters (water, gas, electricity) and environmental parameters across urban municipal networks.
Official Provider Resources & Documentation
Explore official developer manuals, network server registration guides, and system catalogs provided directly by HKT:
