Executive Summary & Core Capabilities

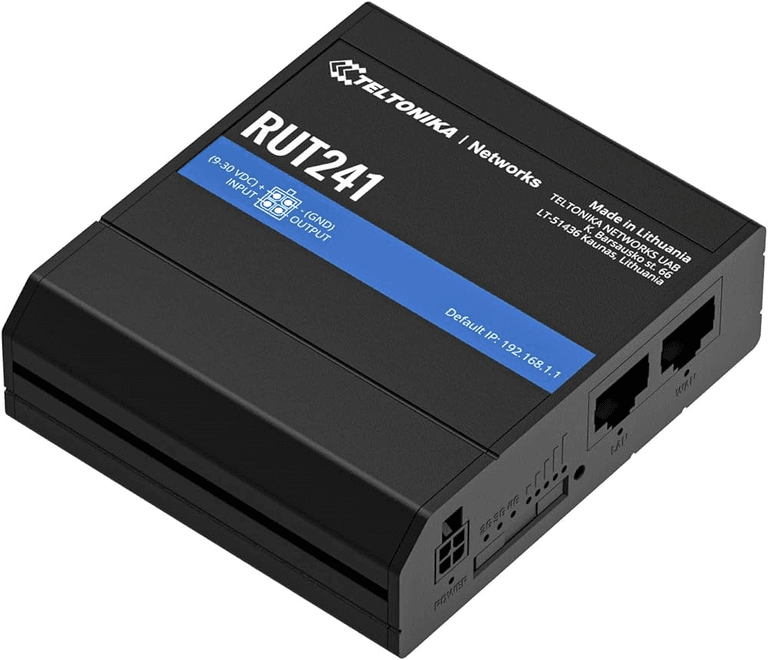

The Teltonika RUT241 is an industrial 4G LTE Wi-Fi router designed to keep critical equipment connected to the internet. It automatically switches between internet sources (like wired Ethernet, Wi-Fi, and 4G cellular data) if your main connection fails. Equipped with eSIM support, it can hold multiple digital SIM profiles remotely, making it ideal for solar sites, smart cities, and automated equipment.
- Reliable Backup Internet: If your main internet line cuts out, the router instantly switches to cellular data or backup Wi-Fi so connected machines, cameras, or payment terminals never go offline.
- Built-in eSIM Capability: Contains a built-in digital SIM. Mobile networks can be downloaded and switched over the air without changing physical SIM cards.
- Heavy-Duty Enclosure: Built with a tough metal shell rated to withstand freezing conditions and extreme heat inside outdoor cabinets.
Powered by a MediaTek MT7628 580 MHz processor running RutOS (OpenWrt-based), with 128 MB DDR2 RAM and 16 MB SPI Flash storage. Features 4G LTE Cat 4 wireless connectivity delivering up to 150 Mbps download / 50 Mbps upload with 3G/2G fallback.
Implements SGP.22 eSIM architecture supporting up to 7 stored operator profiles alongside a physical Mini-SIM slot. Includes Ethernet ports (1x WAN, 1x LAN), Wi-Fi 4 (802.11b/g/n), and an IP30 aluminum chassis rated for operational temperatures from to .
Technical Specifications & Performance Matrix
| Parameter | Engineering Specification |
|---|---|
| Mobile Module | 4G LTE Cat 4, 3G, 2G |
| Max Data Speed | 150 Mbps DL / 50 Mbps UL |
| SIM Configuration | 1x Physical Mini-SIM (2FF) + embedded eSIM (SGP.22) |
| Ethernet Interfaces | 2x 10/100 Mbps (1x WAN, 1x LAN) |
| Wi-Fi Standard | 802.11b/g/n (Wi-Fi 4) supporting up to 50 concurrent users |
| Component | Technical Profile |
|---|---|
| Processor & OS | MediaTek MT7628 (580 MHz) | RutOS (OpenWrt Linux) |
| Memory & Storage | 128 MB RAM | 16 MB Flash Storage |
| Input Voltage | 9 – 30 VDC via 4-pin industrial connector |
| Power Consumption | Maximum 6.5 W |
| Physical Dimensions | | Weight: 125 g |
| Compliance Metric | Specification |
|---|---|
| Casing Material | IP30 Aluminium housing with plastic panels |
| Operating Temperature | |
| Remote Management | Teltonika Remote Management System (RMS) compatible |
| Protocols Supported | Modbus TCP, MQTT, AWS IoT Core, Azure IoT Hub |
Installation & Power Requirements
Target Industry Applications
Industrial M2M & POS Network
Provides secure failover connections for industrial automation, retail POS terminals, and remote ATM networks.
Off-Grid Renewable Energy
Delivers ultra-reliable remote monitoring for solar generation stations and smart infrastructure deployments.
Official Provider Resources & Technical Documentation
Explore official manuals, configuration guides, and community support options provided directly by Teltonika:
