Product Overview

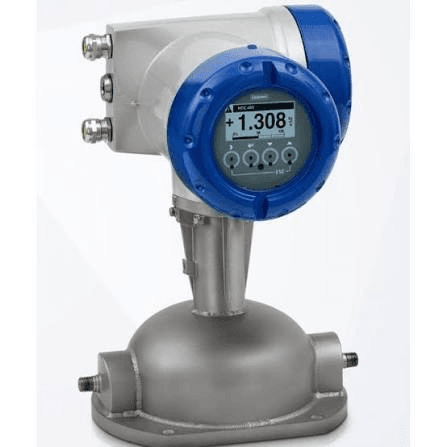

The KROHNE OPTIMASS 2400 represents a massive leap forward in high-volume, bulk mass calculation, uniquely engineered with a multi-straight-tube layout. In traditional bent-tube Coriolis meters, processing thick fluids or lines with massive gas pockets drops operational tracking accuracy completely. The OPTIMASS 2400 bypasses these constraints entirely, delivering high precision at massive volume margins while maintaining minimal pressure losses.
::callout{icon="i-lucide-gauge" color="primary"} Entrained Gas Management: Powered by KROHNE's patented EGM™ algorithm, the system dampens the destructive harmonic shifts caused by active gas bubbles or rapid multi-phase liquid-to-gas transitions. It prevents the measuring tubes from stalling, allowing continuous flow diagnostics during complex multi-phase fractions. ::
Non-Technical Overview: Value Proposition
- Zero Meter Stalling: Keeps your operations running smoothly during full-to-empty or empty-to-full transitions. This prevents expensive pipeline safety shutdowns caused by air pockets during terminal swapping phases.
- Massive Bulk Transfer Capacity: Effortlessly monitors thick, aggressive, or viscous fluids up to a massive 4,600 tonnes per hour. This makes it an ideal fit for quick custody tracking during marine rail or ship bunkering.
- Energy-Efficient Flow Geometry: The straight-tube interior design introduces very little friction. This means less pumping power is required to push fluids through the line compared to looping u-tube designs.
- Wireless Inspection Safety: Check flow loops, verify calibration drift, and collect data securely from up to 20 meters away via the OptiCheck Flow Bluetooth app.
Technical Deep-Dive: Multi-Tube Harmonics

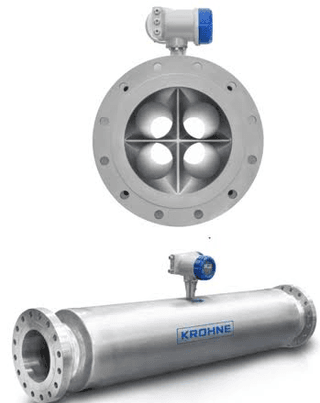

Architectural engineers face unique challenges when scaling Coriolis systems up to larger sizes (DN 100 to 400). The OPTIMASS 2400 handles these forces by splitting bulk volumes across twin or quadruple parallel straight-tube configurations. These wetted paths oscillate symmetrically at high frequencies, turning the inner tubes into a robust secondary containment shield. This configuration prevents crosstalk interference from surrounding plant infrastructure, removing the need for specialized upstream or downstream flow straighteners.
Architecture Specification Grid
Utilize the interactive layout options below to evaluate wetted boundaries and signaling frameworks.
| Metrology Feature | Base Performance Values |
|---|---|
| Core Architecture | Patented Quadruple/Twin Rigid Inline Straight-Tubes |
| Liquid Precision Boundary | ±0.10% standard error shift across commercial custody lines |
| Gas Precision Boundary | ±0.15% maximum deviation under volatile gas conditions |
| Multi-Phase Fraction Limit | Non-stop measurement over 0% to 100% gas volume fractions |
| Process Parameter | Boundary Range Metric |
|---|---|
| Available Nominal Dimensions | DN 100 up to DN 400 flanged process connections |
| Max Volumetric Capacity | Captures massive bulk operations scaling up to 4,600 t/h |
| Maximum Pressure Handling | Standard choices support high-pressure limits up to 160 bar |
| Target Fluids Portfolio | Crudes, viscous molasses, raw liquefied gas, and corrosive slurry mixes |
| Bus Interface Element | Engineering Parameters |
|---|---|
| Signal Converter Model | KROHNE MFC 400 Digital Processing Module |
| Local Field Security | NAMUR NE 107 self-testing with integrated diagnostic loops |
| Next-Gen Field Connectivity | Fully compatible with advanced high-speed Ethernet-APL loops |
| Legacy Communication Buses | Modbus RS485 RTU, PROFINET, HART 7, and PROFIBUS PA |
| Burst Pressure Backup Shell | PED structural casing rated up to a peak limit of 100 bar |
Core Deployments & Use Cases
Marine Terminal Custody Transfer
Ensures absolute tracking precision and fiscal auditing security on deep-sea fuel manifolds, minimizing product inflation during custody exchanges.
Entrained Air Manufacturing Loops
Maintains processing tracking efficiency for viscous products like starch, molasses, or industrial food matrices without causing tracking drops or manual system overrides.
