Product Overview

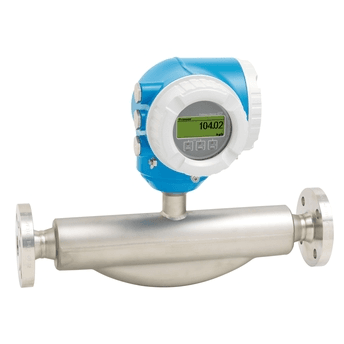

The Endress+Hauser Proline Promass F 300 is an industry-benchmark, high-tier Coriolis mass flowmeter meticulously crafted for engineers requiring pristine calibration diagnostics under erratic industrial operations. Engineered to measure both liquids and gases with unrivaled accuracy, this multivariable system drastically cuts system overhead expenses by monitoring several primary metrics simultaneously within a single deployment trace.
Non-Technical Overview: Value Proposition
- All-in-One Data Capture: Streamline your instrumentation footprint. This single unit calculates mass flow, volume flow, real-time fluid density, and core fluid temperatures natively.
- No Maintenance Interruptions: Features integrated Heartbeat Technology, allowing operators to verify the operational state and strict tracking compliance of the device instantly without breaking process pipe lines.
- Compact and Accessible Layout: The redesigned dual-compartment transmitter box provides rapid engineering adjustments via secure local Wi-Fi pairing or direct optical touch glass layouts.
- Space Optimization: Requires zero straight inlet or outlet pipe run geometries, adapting fluidly to tight, pre-existing industrial skids.
Technical Deep-Dive: Sensing Architecture
At an architectural layer, the Promass F sensor measures fluids leveraging physical Coriolis force tracking vectors. As mass routes through internal twin parallel measurement loops, controlled electrodynamic shifting registers fluid momentum shift directly proportional to literal mass movement, remaining absolutely unswayed by fluid viscosity fluctuations, shifts in specific gravity, or volatile thermal variances.
Architecture Specification Grid
Use the interactive layout below to scan through core metrics across distinct system tiers.
| Metrology Feature | Base Performance Values |
|---|---|
| Core Tracking Principle | Electrodynamic Coriolis Mass Flow Capture |
| Liquid Mass Flow Precision | ±0.10% standard tracking error, down to ±0.05% using PremiumCal options |
| Gas Mass Flow Precision | ±0.25% variance under fluctuating plant loops |
| Density Calibration | Standard tracking accurate to a strict variance of ±0.0005 g/cm³ |
| Process Parameter | Boundary Range Metric |
|---|---|
| Piping Diameter Range | DN 8 to 250 (3/8" to 10" nominal cross-sections) |
| Process Thermal Limits | Extended architecture handles ranges from –196 to +350 °C |
| Max Volumetric Flow | Up to 2,200,000 kg/h operational limit |
| Media Versatility | Handles aggressive fluids, combustible fuels, or inert gases |
| Bus Connectivity Element | Engineering Parameters |
|---|---|
| Housing Layout | Compact dual-compartment system allowing localized isolation options |
| Configurable Loop I/Os | Supports up to 3 modularly combinable inputs/outputs and fieldbuses |
| Wireless Integration | Broad spectrum WLAN hotspot linking alongside standard backlit touch mechanics |
| Secondary Containment | Sensor shell packed with dry nitrogen; pressure burst guarded up to 85 bar |
Core Deployments & Use Cases
Custody Transfer Operations
Maintains rigorous fiscal auditing precision on distribution manifolds, loading arms, and terminal networks where tiny drops equal immense valuation swings.
Aggressive Process Blending
Ensures accurate multi-feed liquid chemical blending tracking over changing densities or fluid viscosities without requiring recalibration downtime.
